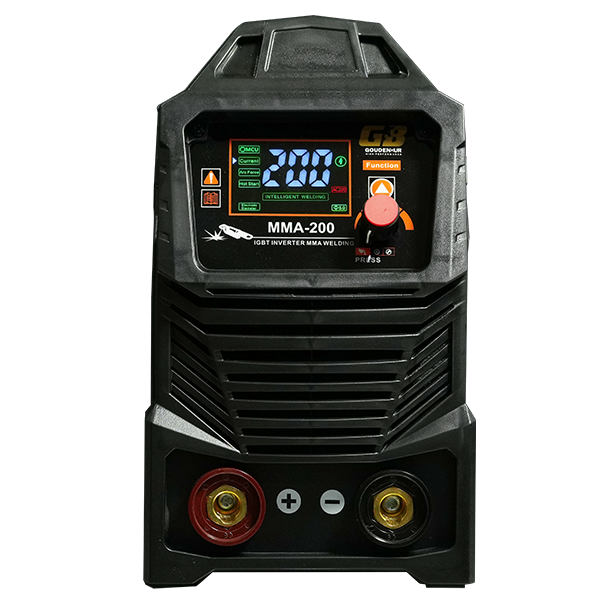

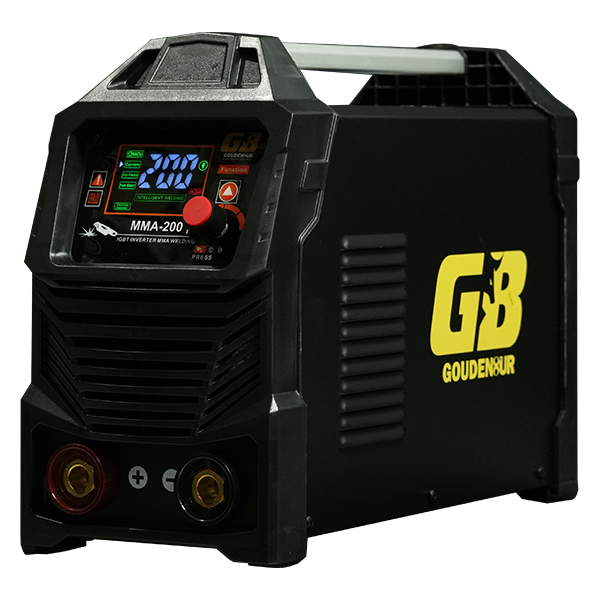

MMA 200 GB V3

Input Voltage : 1 Phase 120V/ 220V 50/60Hz
Input Capacity(KVA) : 7.34
No-load Voltage(V) : 62
Output Current Range(A) : 120V/140A 220V/160A
Duty Cycle(%) : 120V/40% 220V/40%
Efficiency(%) : 80
Protection Class : IP21S
Insulation Class : F
Power Factor : 0.93
Applied Electrodes(mm) : 1.6-4.0
Machine Size(mm) : 275x110x230
Packing Size(mm) : 325x140x270
Weight(Kg) : 3.8
